＞＞Products

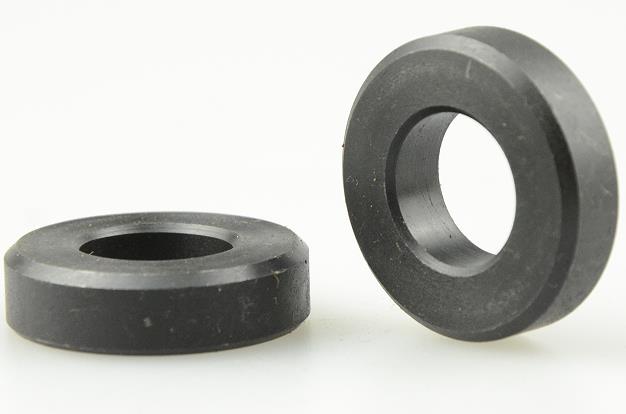

WASHER
- 用途: 与螺帽匹配使用,防止螺帽锁紧时减少各种配件间的磨耗
- 材质；S45C，表面染黑皮膜处理
- 热处理硬度: HRC32±5°
-
产品规格:
英制 3/8”/1/2”/5/8”/3/4”7/8”/1”；
公制 M10/M12/M14 /M16/M18/M20/M22/M24 -
- Purpose: avoid from wearing when tightening the flange nut
- Material: S45C, black oxide furnished
- Heat treatment: HRC32±5°
-
Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”；
Metric size M10/M12/M14 /M16/M18/M20/M22/M24
Order no. Model A(mm) B(mm) C(mm) Metric Inch W-3 M10 3/8" 10.3 22 4 W-4A M12 1/2" 13 30 6 W-4B M14 9/16" 15 30 8 W-5 M16 5/8" 16.5 35 10 W-6 M20 3/4" 20.5 38 10 W-7 M22 7/8" 23 45 10 W-8 M24 1" 26 50 12
