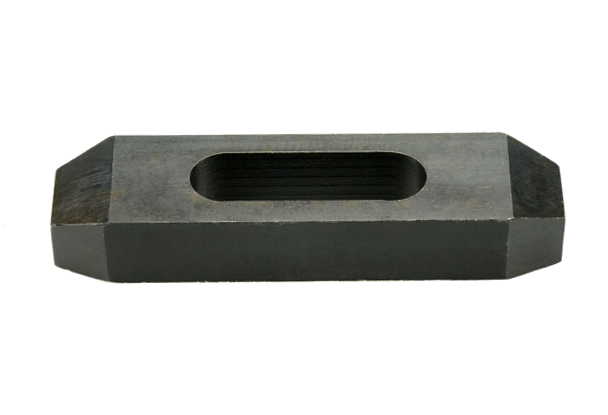

PLAIN CLAMP
- 用途: 利用双头压板平面压附在三角级枕平面上固定工件
- 材质；S45C，表面染黑皮膜处理
- 热处理硬度：HRC32±5°
-
产品规格:
3/8S 3/8M 3/8L (中槽宽 11mm)
1/2S 1/2M 1/2L (中槽宽 15mm)
5/8S 5/8M 5/8L(中槽宽 18mm)
3/4S 3/4M 3/4L (中槽宽 21mm)
1S 1M 1L (中槽宽 26mm)
Purpose:Apply the surface of step clamp onto the surface of step block for fixing the work piece.
- Material:S45C, black oxide furnished
- Hardness of heat treatment：HRC32±5°
-
Product spec.:
3/8S 3/8M 3/8L (slot width 11mm)
1/2S 1/2M 1/2L (slot width 15mm)
5/8S 5/8M 5/8L(slot width 18mm)
3/4S 3/4M 3/4L (slot width 21mm)
1S 1M 1L (slot width 26mm)
| Order no. | Model | A | B | C | D | E | F | Applied stud | |
| Inch | Metric | ||||||||
| PC-63031 | 3/8(S) | 11 | 65 | 25.4 | 12.7 | 23 | 19 | 3/8 | M10 |
| PC-63032 | 3/8(M) | 11 | 100 | 26 | 15 | 35 | 30 | ||
| PC-63033 | 3/8(L) | 11 | 150 | 28.5 | 19 | 48 | 54 | ||
| PC-64041 | 1/2(S) | 15 | 65 | 30 | 13 | 25.5 | 16 | 1/2 | M12-M14 |
| PC-64042 | 1/2(M) | 15 | 100 | 32 | 19 | 34.5 | 31 | ||
| PC-64043 | 1/2(L) | 15 | 150 | 32 | 22 | 47.5 | 55 | ||
| PC-65051 | 5/8(S) | 18 | 65 | 32 | 16 | 25.5 | 14 | 5/8 | M16 |
| PC-65052 | 5/8(M) | 18 | 100 | 38 | 19 | 35 | 30 | ||
| PC-65053 | 5/8(L) | 18 | 150 | 38 | 22 | 46.5 | 57 | ||
| PC-66061 | 3/4(S) | 21 | 100 | 38 | 19 | 35 | 30 | 3/4 | M18-20 |
| PC-66062 | 3/4(M) | 21 | 150 | 38 | 25 | 50 | 50 | ||
| PC-66063 | 3/4(L) | 21 | 200 | 44.5 | 28.5 | 65 | 70 | ||
| PC-68081 | 1(S) | 26 | 150 | 50 | 32 | 55.5 | 39 | 7/8-1 | M22,M24 |
| PC-68082 | 1(M) | 26 | 200 | 50 | 38 | 65.5 | 69 | ||
| PC-68083 | 1(L) | 26 | 250 | 50 | 38 | 88 | 74 | ||
| PC-68084 | 1(XL) | 26 | 320 | 50 | 38 | 113 | 94 | ||
